1977 FORD ESCORT PANEL VAN
Ford Escort Van .It is a 1977 FORD ESCORT PANEL VAN , Pine Lime in colour (ie Yellow :) ).

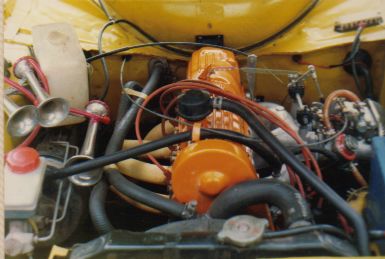

She has a 2.0 ltr OHC Engine .
The van is a GL version which has a full roof lining to the rear of the Van.
| Year of Manufacture | 1977 |
|---|---|
| Transmission | Manual Std 4 Speed |
| Paint Colour | Pine 'N' lime |
| Compression | 1176 KPa |
| Firing Order | 1-3-4-2 |
| Bore | 90.82 mm |
| Stroke | 76.95 mm |
| Engine Displacement | 1993cc |
| Engine Output (Din) | 70 KW@7200 RPM |
| Engine Torque (Din) | 148 Nm @3800 RPM |
| Brake | Front DISC Rear DRUM |
| Rear Axle | |
| Rear Axle Ratio | 3.54 |
| No teeth | Crown 34 Drive Pinion 11 |
I then upgraded

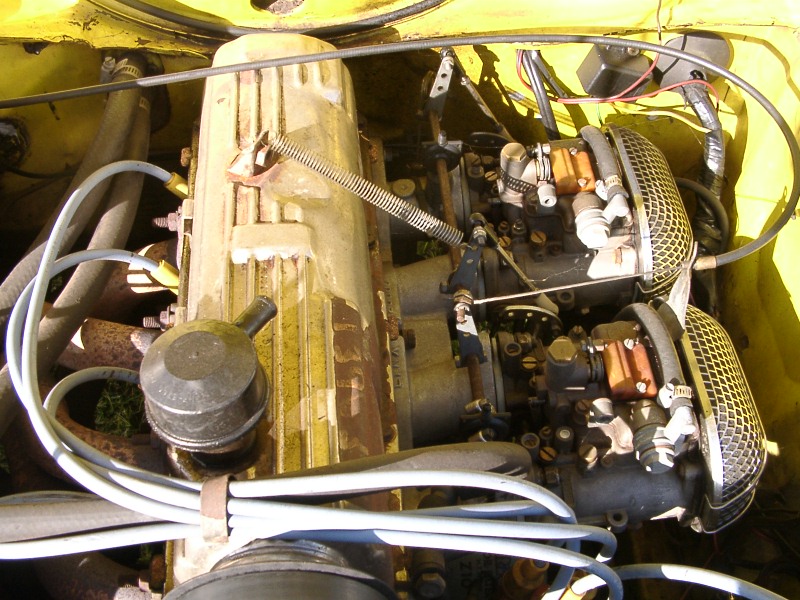

It was fitted with 2 x Dual 45 Mil Delioth Carburettors,LYNX maniford. extractors, CD sound system, Central Locking, Bubble Windows, One piece Tail shaft, Alison Electronic Ignition System (ie Pointless System) ,worked Cam (530B grind) and the motor has been Balanced .
Had to move the Battery to behind the drivers seat to fit the carbies.
After a few years I put a RS2000 front Nose on it, making it a very special Looking van,
The Yellow van with the Black Bubble Windows really make a great looking Van.
It is awaiting a little more restoration as theres a little rust that needs to be evicted
and I want to strip the carburettors down and fit a new linkage system.

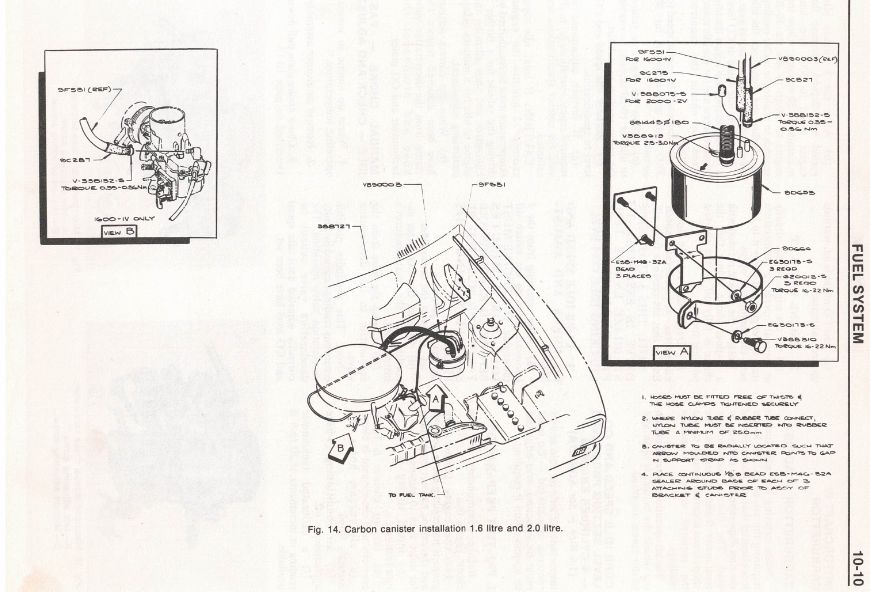

10 Fuel System.pdf

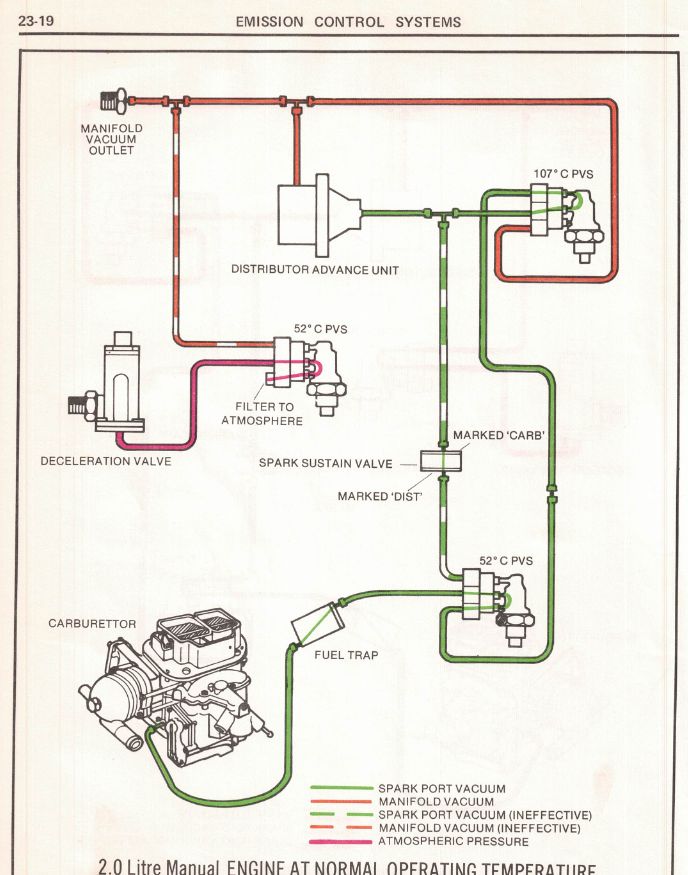

23 Emission Control .pdf
